Toyota Camry Worn Tie Rod End Replacement

Updated on January 26, 2019
hardlymoving profile image

Hardlymoving writes about do-it-yourself automobile maintenance on various makes and models.

The outer tie rod end is a greased rotating ball and socket steering component that controls the movement of the front wheels by either pushing or pulling on the wheel knuckle. The wheel knuckle pivots on top and bottom ball joints which are also subject to wear.

When the tie rod's ball and socket are worn, steering response will get sloppy; too much free play may exist in the steering wheel before the wheel's respond; a wheel alignment cannot be performed; uneven tire wear maybe noticeable; a steering wheel shake or front end vibration may be felt during acceleration. The tie rod's wear may be caused by its dust cover splitting allowing entry of moisture and dirt or the sealed grease has lost its lubricating properties.

Tie rod end damage or wear can occur when impacting curbs and driving over pot holes and irregular road surfaces . . . so slow down when you see a speed bump! Although high mileage cautiously driven Camry's rarely have tie rod end failures, the toe adjustment needed to set the angle of the wheels may not be possible with worn tie rods during a front end alignment job.

Camrys, as well as other import vehicles, do not have grease fittings to allow re-lubrication of the tie rod's ball-in-socket. In addition, the rubber boot that seals in the grease may dry root and split exposing the tie rod joint to dirt and moisture which will accelerate wear. As a general rule, the steering wheel should not allow more than 1/8 inch free play before the wheels respond. Lastly, worn tie rods will accelerate tire wear.

Toyota Camry Steering System

Common Toyota steering system diagram
Common Toyota steering system diagram

Toyota Camry Tie Rod Details

Camry Tie Rod Component Details
Camry Tie Rod Component Details

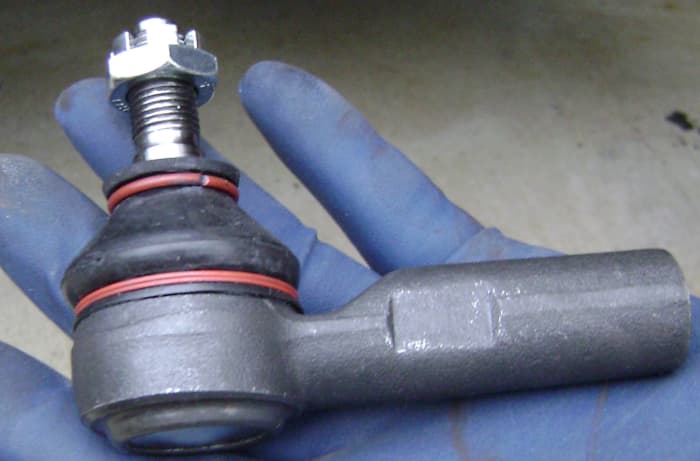

Camry Tie Rod End
Camry Tie Rod End | Source

1. Remove the tire to expose the tie rod. Support the car with a jack stand.

2. Apply paint marks to the top of the inner tie rod and the jam nut. When loosening the jam nut, the inner tie rod will more than likely rotate with the nut. The inner tie rod can be rotated back in place with a 14mm open end wrench while holding the jam nut in place with a 19mm wrench. The paint marks will help you bring the inner tie rod back to its original position after the jam nut has been loosened.

Camry Inner Tie Rod & Jam Nut
Camry Inner Tie Rod & Jam Nut

3. Loosen the jam nut on the tie rod end with a 19mm open end wrench. This is to allow removal of the old tie rod end when detached from the steering knuckle.

Camry Jam Nut loosening procedure
Camry Jam Nut loosening procedure

4. Remove the cotter pin from the tie rod end and spin loose the castle nut until it reaches the peak of the threads. This will allow the old tie rod to partially disconnect from the steering knuckle but not drop away.

Click thumbnail to view full-size
Camry outer tie rod cotter pin removalCamry outer tie rod castle nut removal
Camry outer tie rod cotter pin removal
Camry outer tie rod cotter pin removal
Camry outer tie rod castle nut removal
Camry outer tie rod castle nut removal

5. With a ball peen hammer, smack the side of the steering knuckle that surrounds the tie rod spindle to "shock" the spindle loose from the steering knuckle. A few smart impacts should free it loose. If this does not work or you do not feel comfortable doing this, a universal ball joint separation tool can be used.

Camry outer tie rod end to steering knuckle removal
Camry outer tie rod end to steering knuckle removal

6. Remove the castle nut, separate it from the steering knuckle and twist off the tie rod end from the inner rod. Keep a count on the number of turns for installation of the new tie rod.

Spin - rotate off Camry outer tie rod end
Spin - rotate off Camry outer tie rod end

7. Measure and compare the length of the old tie rod with the new tie rod. The measurement should be taken from the threaded end to the center of the tie rod Spindle. If there is a difference, that difference must be added or subtracted from the inner rod jam nut. In most instances, the replacement is usually of the same length.

8. Spin on the new tie rod using the number of turns counted from removing the old tie rod. If perfect, the jam nut should not take more than 1/8 turn to secure the nut. If the length of the new tie rod is different, add or subtract the length.

9. Position the tie rod end into the steering knuckle, spin on and torque down the new castle nut. Warning: Over-torquing will strip the threads of the castle nut. Using a torque wrench is recommended if unsure as to the appropriate tension; then apply enough torque to align the castle nut opening with the tie rod spindle hole for the new cotter pin. DO NOT LOOSEN for hole alignment. The tightening of the castle nut will press fit in the tie rod into the steering knuckle.

Click thumbnail to view full-size

10. If the new tie rod end comes with a grease fitting, screw on the new fitting, torque down and lubricate with a grease gun. It is recommend that grease with Molybdenum disulfide (Moly) is contained in the grease.

11. Twist the inner tie rod until the paint mark is pointing up. While keeping the Inner tie rod from moving with a 14mm open end wrench, use a 19mm open end wrench to secure the jam nut onto the new outer tie rod end.

Consider having a wheel alignment to ensure the toe-in setting is correct.
