How to Remove and Disassemble the Honda Harmony 215 Transmission

Eddie spent 35 years in the automotive business with Honda. He is an ASE Certified Master Technician and has bruised knuckles to prove it.

A Tutorial on the Honda Harmony 215 Transmission

I have the solution to the transmission problem on your Honda Harmony 215 lawnmower. If the transmission is slipping, skipping, or feels like it's popping out of gear, I can help you fix that. If your wheels spin while you suspend the rear wheel off the ground but stop spinning once they hit the ground, I can show you how to fix that too.

I fixed my problem by swapping the trans gear shift lever with the drive lever and adding shims as needed to both assemblies, and the pictures and captions below show how I did it.

I believe this is the best information you can find on these problems, I have spent weeks trying to figure this out.

Here's a video, also, that I did on removing the transmission, and here is another article about other common transmission problems in the Honda Harmony 215.

Part 1: How to Remove the Transmission on the Honda Harmony 215

Remove the wheels and drive gear on the Honda Harmony 215.

Remove the wheels and drive gear on the Honda Harmony 215.

Remove the snap ring on the inside of the wheel adjusters under the mower deck on the Honda Harmony 215 , you may need a set of 90deg snap ring pliers.

Remove the snap ring on the inside of the wheel adjusters under the mower deck on the Honda Harmony 215 , you may need a set of 90deg snap ring pliers.

Remove the wheel height adjusters on the Honda Harmony 215.

Remove the wheel height adjusters on the Honda Harmony 215.

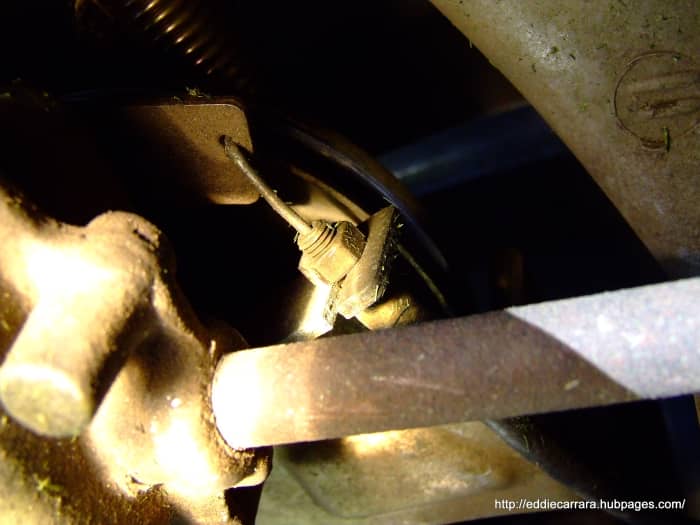

Remove the shift cable on the Honda Harmony 215, it's a10 mm nut. You need to either remove the shift cable from the hand lever or put the transmission in 1st gear to give the cable slack.

Remove the shift cable on the Honda Harmony 215, it's a10 mm nut. You need to either remove the shift cable from the hand lever or put the transmission in 1st gear to give the cable slack.

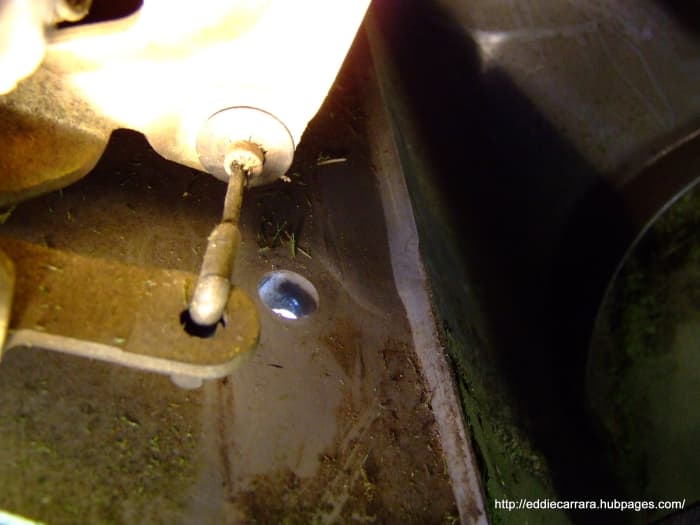

I kept this transmission drive cable in place on the Honda Harmony 215 and removed it from the wheel engage hand lever. I didn't want to ruin the press clip.

I kept this transmission drive cable in place on the Honda Harmony 215 and removed it from the wheel engage hand lever. I didn't want to ruin the press clip.

Have the trans in first gear on the Honda Harmony 215.

Have the trans in first gear on the Honda Harmony 215.

The Honda Harmony 215 transmission out of the mower

The Honda Harmony 215 transmission out of the mower

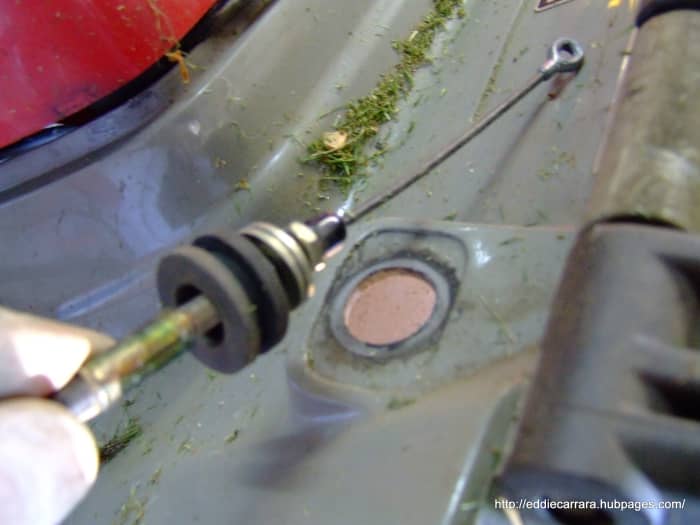

Remove the rubber grommet from the mower deck on the Honda Harmony 215 and keep the cable assembly together.

Remove the rubber grommet from the mower deck on the Honda Harmony 215 and keep the cable assembly together.

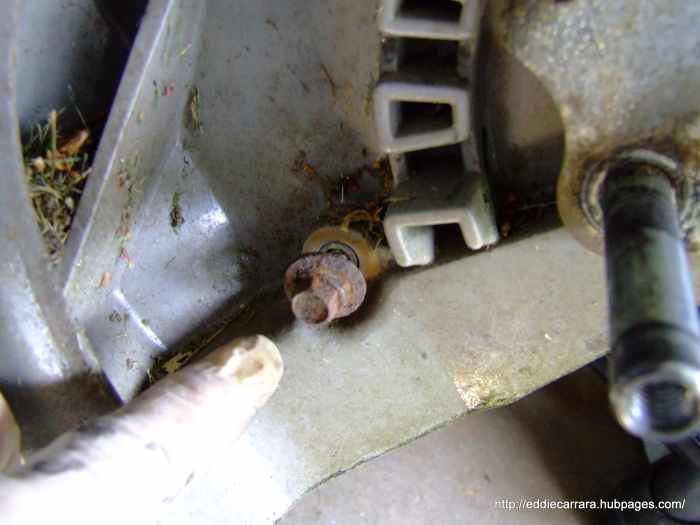

Remove the bolt for the bottom deck cover from behind the left wheel height adjuster on the Honda Harmony 215.

Remove the bolt for the bottom deck cover from behind the left wheel height adjuster on the Honda Harmony 215.

Also remove the collar under the bolt that holds the deck cover, on the Honda Harmony 215

Also remove the collar under the bolt that holds the deck cover, on the Honda Harmony 215

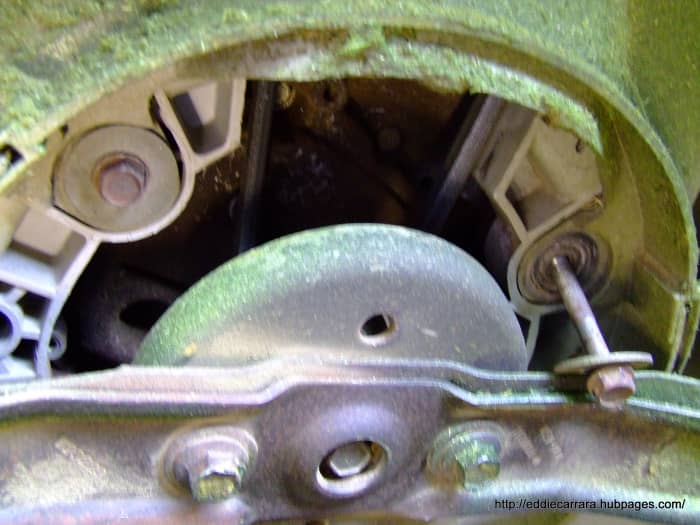

Remove the engine bolts that hold the deck cover on from underneath the Honda Harmony 215

Remove the engine bolts that hold the deck cover on from underneath the Honda Harmony 215

Scroll to Continue

Read More from AxleAddict

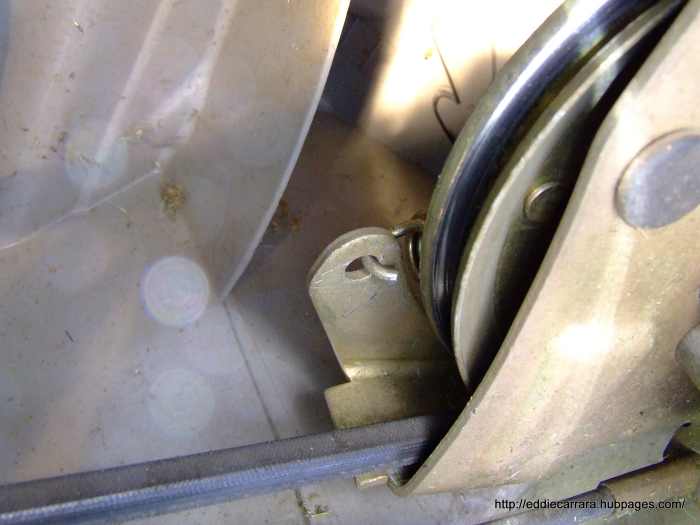

This spring will give you the most trouble, you have to grab the metal bracket that is mounted to the transmission with a large pair of channel lock pliers and twist the transmission to remove the drive belt.

This spring will give you the most trouble, you have to grab the metal bracket that is mounted to the transmission with a large pair of channel lock pliers and twist the transmission to remove the drive belt.

Once the drive belt is off, the spring is easy to remove. To re install the spring, put the spring on first and use the channel lock pliers to twist the trans and slip the drive belt back on the pulley on the Honda Harmony 215

Once the drive belt is off, the spring is easy to remove. To re install the spring, put the spring on first and use the channel lock pliers to twist the trans and slip the drive belt back on the pulley on the Honda Harmony 215

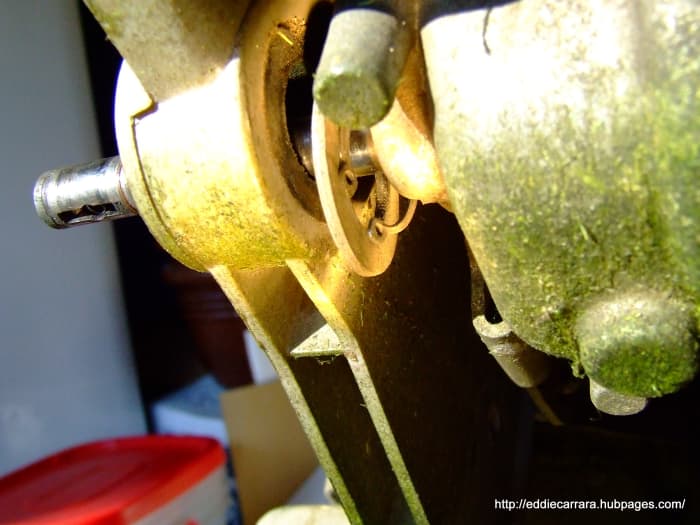

Remove the pulley from the transmission on the Honda Harmony 215

Remove the pulley from the transmission on the Honda Harmony 215

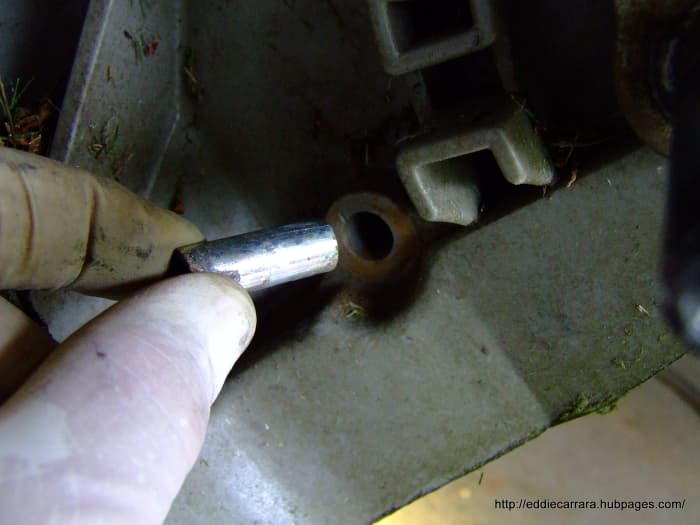

Don't lose the drift key on the Honda Harmony 215 transmission shaft  :)

Don't lose the drift key on the Honda Harmony 215 transmission shaft :)

Remove the metal bracket from the transmission on the Honda Harmony 215

Remove the metal bracket from the transmission on the Honda Harmony 215

Part 2. The View Inside the Transmission of the Honda Harmony 215

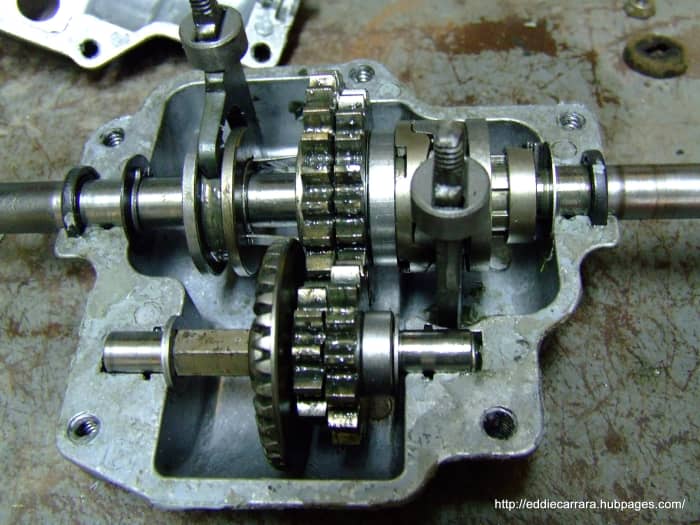

View inside the Honda Harmony 215 transmission with no grease. It is very well constructed and I found very little wear after 16 years of use.

View inside the Honda Harmony 215 transmission with no grease. It is very well constructed and I found very little wear after 16 years of use.

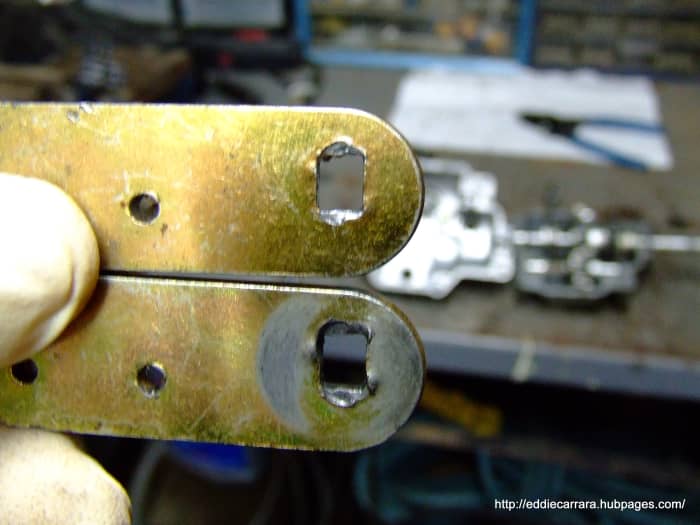

These are the levers that are mounted to the shift forks. As you can see they are pretty beat up, the lower one especially, that is the lever which engages the wheels.

These are the levers that are mounted to the shift forks. As you can see they are pretty beat up, the lower one especially, that is the lever which engages the wheels.

I ended up swapping the trans gear shift lever with the drive lever and adding shims as needed to both assemblies on the Honda Harmony 215 transmission

I ended up swapping the trans gear shift lever with the drive lever and adding shims as needed to both assemblies on the Honda Harmony 215 transmission

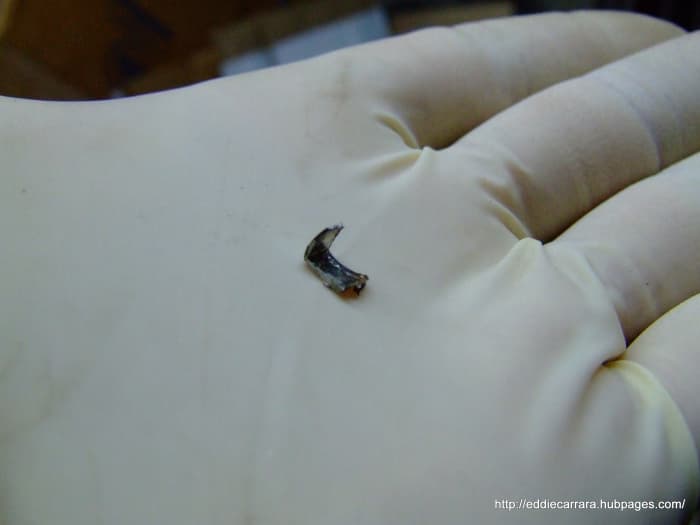

This is the shim I made out of a very thin stainless steel washer. I had to clean it up even more in order to  fit it between the lever and shift fork.

This is the shim I made out of a very thin stainless steel washer. I had to clean it up even more in order to fit it between the lever and shift fork.

I just used high temp all purpose grease inside the trans.

I just used high temp all purpose grease inside the trans.

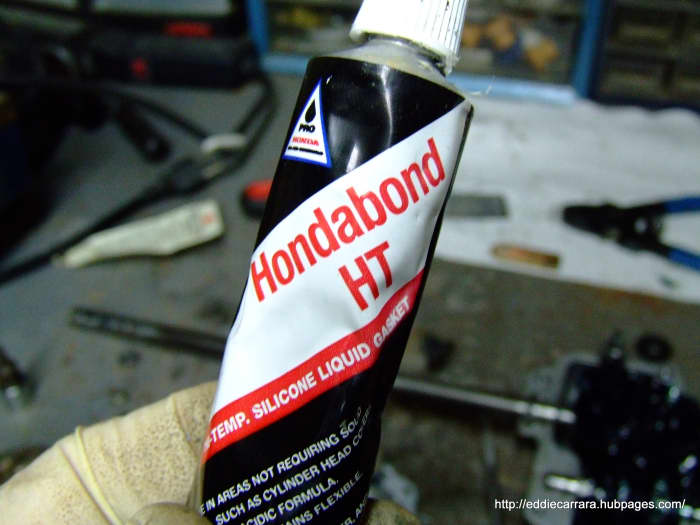

There is no gasket for the case, so you have to use something comparable to Honda bond or Yama bond.

There is no gasket for the case, so you have to use something comparable to Honda bond or Yama bond.

Honda Harmony 215 transmission Bottom case

Honda Harmony 215 transmission Bottom case

Shift fork with bearing for theHonda Harmony 215 , the shift fork also shows wear.

Shift fork with bearing for theHonda Harmony 215 , the shift fork also shows wear.

1st and 2nd gear for Honda Harmony 215

1st and 2nd gear for Honda Harmony 215

Honda Harmony 215, this is the syncro gear that engages the transmission.

Honda Harmony 215, this is the syncro gear that engages the transmission.

Lettering on a seal is always the outside of the seal.

Lettering on a seal is always the outside of the seal.

The cupped side of the seal faces the lube, or inside the transmission.

The cupped side of the seal faces the lube, or inside the transmission.

Honda Harmony 215 Spicer transmission, who would have thought :)

Honda Harmony 215 Spicer transmission, who would have thought :)

Honda Harmony 215 transmission apart

Honda Harmony 215 transmission apart

Honda Harmony 215 syncro for 1st and 2nd gear.

Honda Harmony 215 syncro for 1st and 2nd gear.

Honda Harmony 215 drive gear assembly.

Honda Harmony 215 drive gear assembly.
